Laser power and resonator
The PW8025 is shown with a 20KW Raycus CE-certified fiber laser resonator. The page also states laser power is available from 3KW to 20KW, so confirm the exact power for your material mix and thickness range.

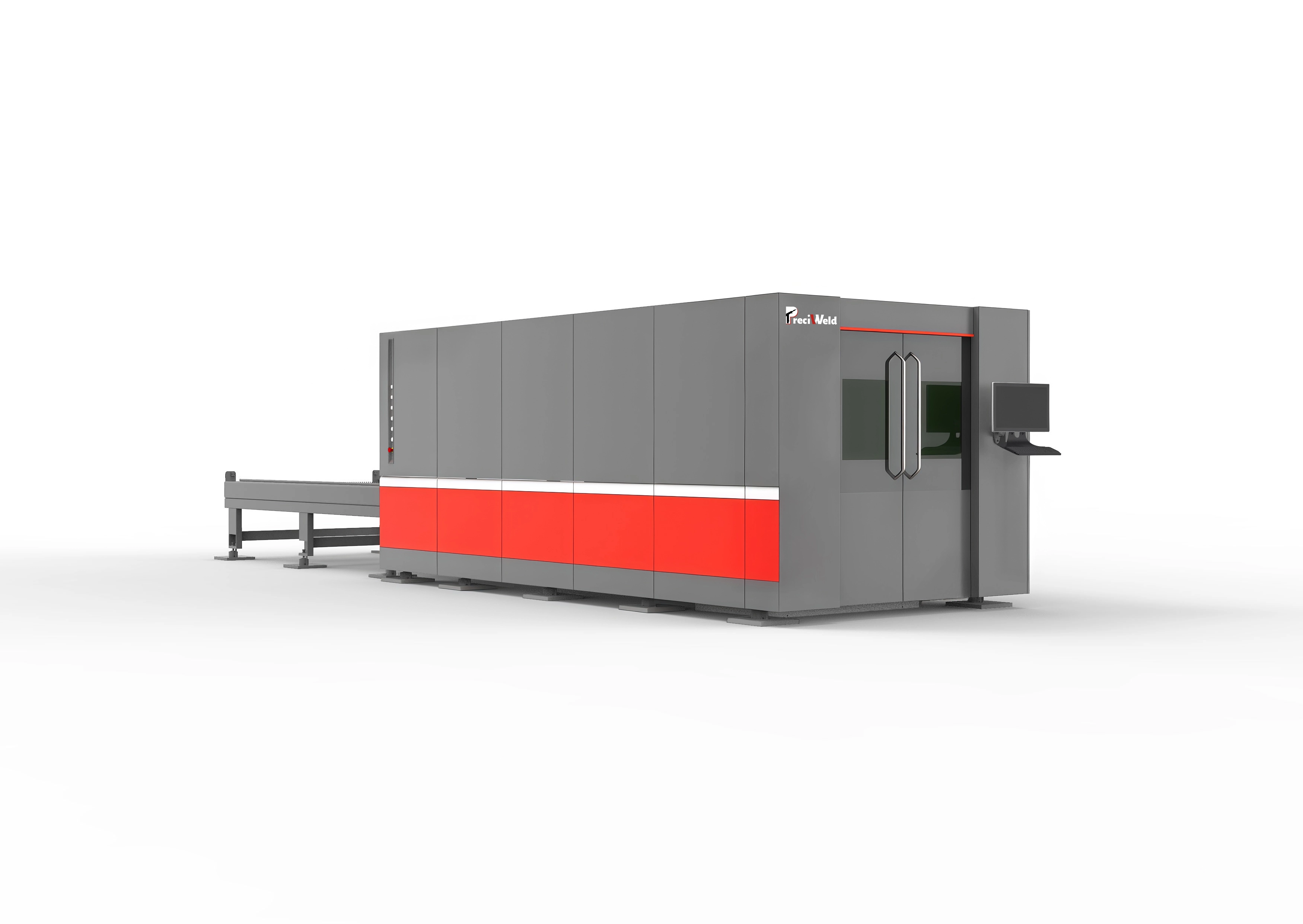

The PW8025 is a fully enclosed 20KW laser cutting machine built for continuous metal sheet production, and its CYPCUT-controlled platform gives operators a capable cnc laser cutting machine for stainless steel, carbon steel, aluminum alloy, and brass.
The PW8025 is listed as a gantry-structure model with a fully enclosed cover and dual interchangeable working tables.
The 2550*8200mm working size is supported by 2550mm X travel, 8200mm Y travel, and 200mm Z travel. The page states a 20KW Raycus CE-certified fiber laser resonator, with laser power also available from 3KW to 20KW.
Published accuracy figures are ±0.05mm for X/Y positioning, ±0.008mm for Z positioning, and ±0.03mm for X/Y resetting. The max no-load running speed is 120m/min, X/Y max accelerated speed is 1.5G, and the table max loading weight is 4000KGS.
The build includes a seamless welded lathe bed, a cast aluminum crossbeam, and water cooling. Power demand is 380V/50HZ/100A, overall dimensions are 21500*4350*2220mm, and weight is 25.5T.
Published parameters for the PW8025 fully enclosed 20KW model.
| Item | Parameter / Remark |
|---|---|
| Model | PW8025, Gantry structure |
| Working size | 2550*8200mm, Dual working table |
| X travel | 2550mm |
| Y travel | 8200mm |
| Z travel | 200mm |
| X/Y position accuracy | ±0.05mm |
| Z position accuracy | ±0.008mm |
| X/Y resetting position accuracy | ±0.03mm |
| Max no-loading running speed | 120m/min |
| X/Y max accelerated speed | 1.5G |
| Table max loading weight | 4000KGS |
| Cooling | Water cooling |
| Power demand | 380V/50HZ/100A |
| Overall dimensions | 21500*4350*2220mm |
| Weight | 25.5T |
| Laser Power | Material | Thickness / Gas |
|---|---|---|
| 20000W | Mild Steel / Carbon Steel | ≤40mm, O2 |
| 20000W | SS 304 Stainless Steel | ≤40mm, N2 |
| 20000W | Aluminum | ≤30mm, N2 |
| 20000W | Brass | ≤20mm, N2 |
Use the published configuration list to confirm the setup that fits your production plan.
The page lists a 20KW Raycus CE-certified fiber laser resonator and also states laser power is available from 3KW to 20KW. The product page presents a quote-request or customized-solution path; pricing is not listed.
The PW8025 is shown with a 20KW Raycus CE-certified fiber laser resonator. The page also states laser power is available from 3KW to 20KW, so confirm the exact power for your material mix and thickness range.

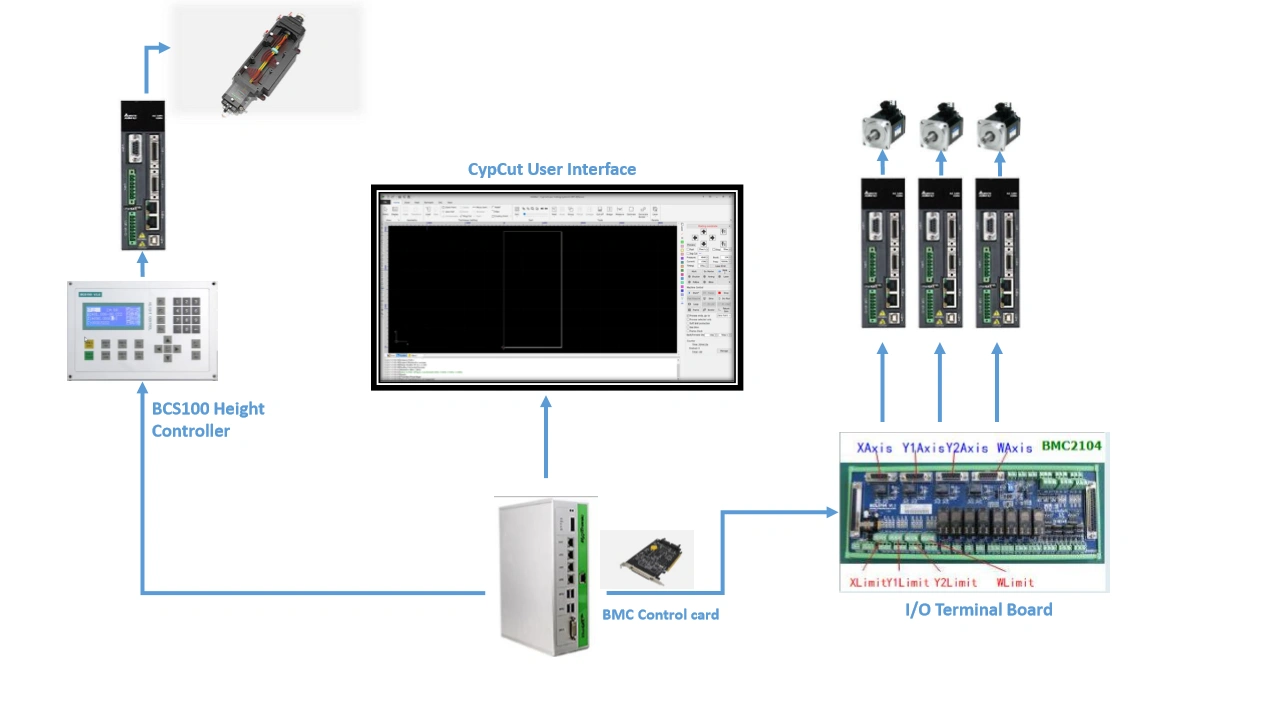

The descriptive text highlights a Raytools cutting head, while the configuration table lists Raytools/BOCI/PRECITEC as cutting head options. Control is listed as CYPCUT with CYPCUT BCS100 V3.0 height follow system.
The dual interchangeable working tables support continuous operation. Each table has a max loading weight of 4000KGS, and the working size is 2550*8200mm with 2550mm X travel and 8200mm Y travel.
Plan for water cooling, a 380V/50HZ/100A power demand, overall dimensions of 21500*4350*2220mm, and a weight of 25.5T. The product page presents a quote-request or customized-solution path; pricing is not listed.
The PW8025 is described for cutting stainless steel, carbon steel, aluminum alloy, brass, and similar metals.
Published cutting parameters at 20000W list mild steel/carbon steel up to 40mm with O2, SS 304 stainless steel up to 40mm with N2, aluminum up to 30mm with N2, and brass up to 20mm with N2.
For stainless steel and carbon steel work, the published 20000W parameters cover thicknesses up to 40mm, using N2 for SS 304 stainless steel and O2 for mild steel / carbon steel. These figures are cutting parameters, not a guarantee for every edge quality or tolerance requirement.
Aluminum is listed up to 30mm with N2, and brass up to 20mm with N2 at 20000W. Confirm gas supply, nozzle choice, and job requirements with the supplier before setting production parameters.
Applications named on the product page include chassis cabinets, elevator decoration, kitchen equipment, lighting, automotive chassis, and other metal processing industries.
Dual interchangeable working tables and a 120m/min max no-load running speed support continuous operation. The 1.5G X/Y max accelerated speed and 4000KGS table load are also listed for production planning.
Published certification, control, and main configuration details for the PW8025.
The page states the model has passed CE from ECM and SGS, and identifies the 20KW resonator as a Raycus CE-certified unit. The control package is listed as CYPCUT with CYPCUT BCS100 V3.0 height follow system.
Keep adjacent product options together for a faster catalog comparison.

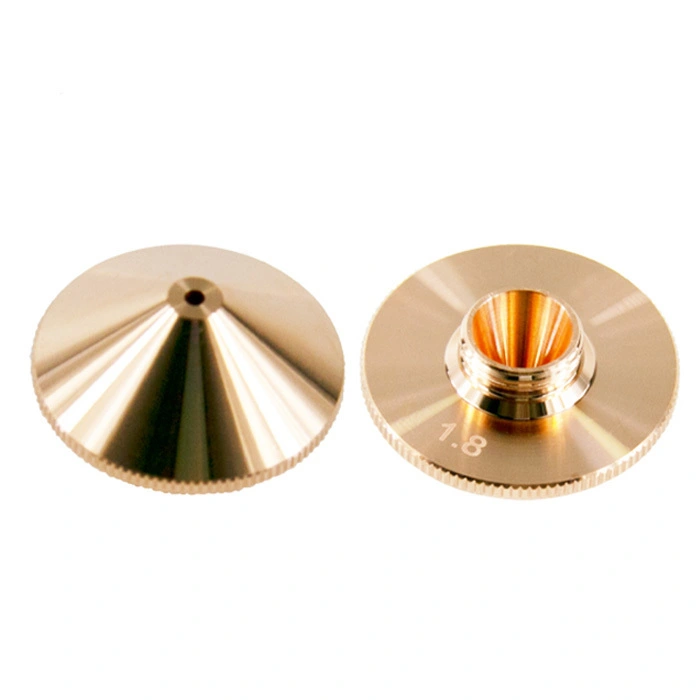

A laser nozzle is a precision component that directs assist gas and focuses the laser beam onto the material surface for cutting, welding, or engraving. It protects the lens from spatter, controls…
View product

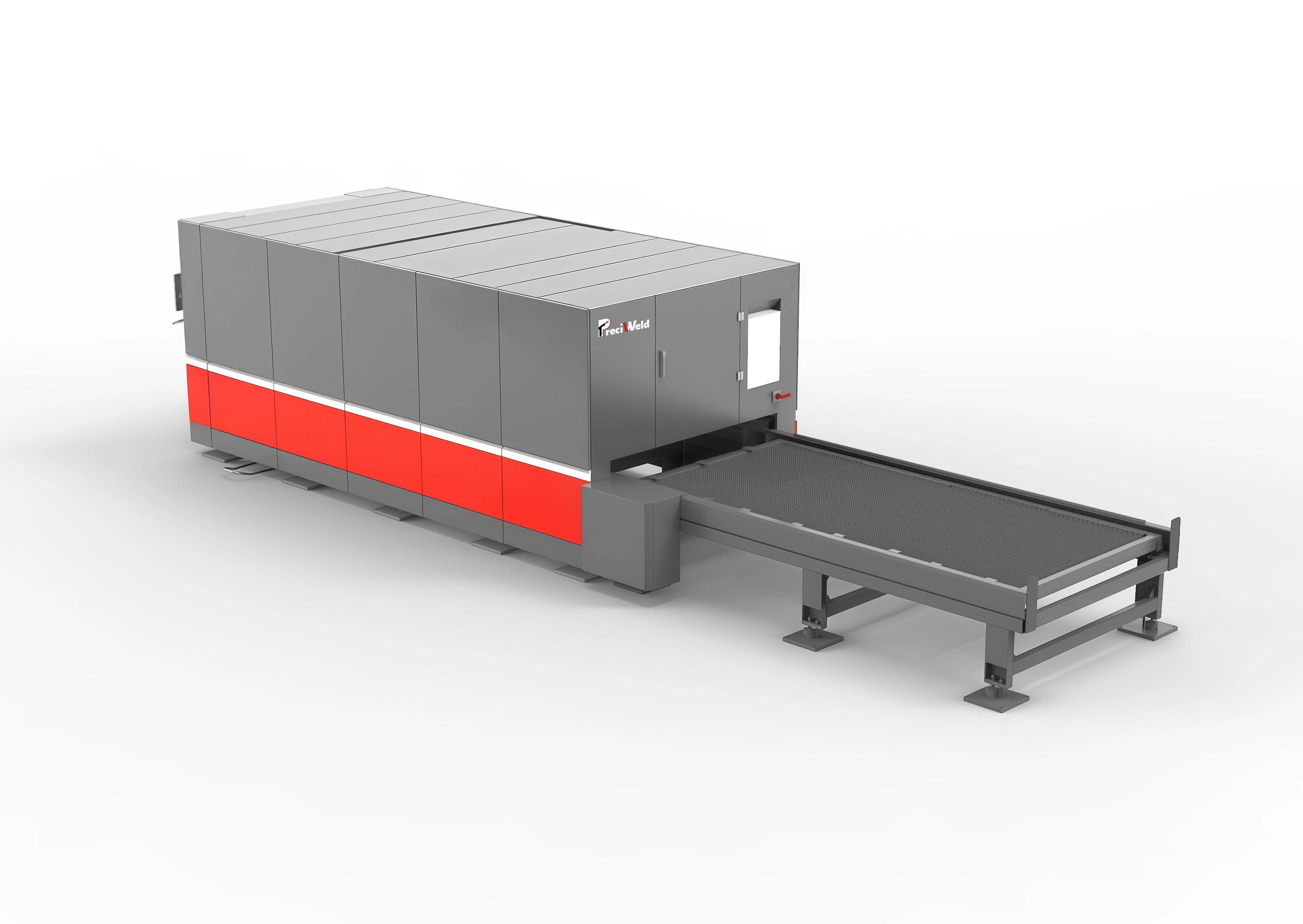

Manufacturer of fiber laser metal cutting machine. Features 6KW laser power and fully enclosed design with factory direct OEM service.
